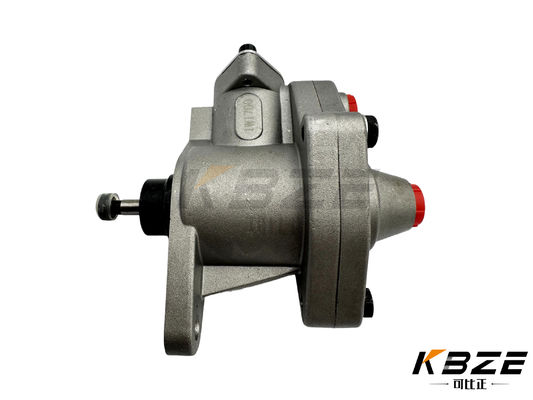

CAT 3406B/3406C DIESEL ENGINE 1W-1700 FUEL TRANSFER PUMP FOR E245 E375 EXCAVATOR

PRODUCT DESCRIPTION


Fuel Transfer Pump How To Work

A fuel transfer pump is used to move fuel from one location to another, typically from a storage tank to a vehicle or equipment. Here’s how it generally works:

1. **Power Source**: Fuel transfer pumps are powered by electricity or sometimes by a manual crank. Electric pumps are more common due to their ease of use and efficiency.

2. **Inlet and Outlet**: The pump has an inlet and an outlet. The inlet is connected to the fuel source (such as a tank), and the outlet is connected to the destination (like a vehicle's fuel tank).

3. **Priming (if applicable)**: Some pumps may require priming before use, especially if they've been disconnected or unused for a period. Priming involves filling the pump and its intake hose with fuel to remove any air and ensure smooth operation.

4. **Switching On**: For electric pumps, you typically switch it on using a power switch. Manual pumps require physical operation, such as cranking or pumping.

5. **Operation**: Once powered on, the pump uses its internal mechanisms (such as impellers or diaphragms) to create suction at the inlet, pulling fuel from the source.

6. **Transfer**: The fuel is then pushed through the pump and out through the outlet hose or nozzle, flowing towards the intended destination (vehicle, equipment, etc.).

7. **Automatic Shut-off (optional)**: Some pumps have an automatic shut-off mechanism that stops the pump when the tank or container being filled reaches a certain level. This prevents overfilling and spillage.

8. **Monitoring**: During operation, it’s important to monitor the transfer to ensure it proceeds smoothly without leaks or other issues.

9. **Completion**: Once the transfer is complete, switch off the pump and disconnect the hoses securely to prevent leaks or spills.

10. **Maintenance**: Regular maintenance such as cleaning filters, checking hoses for wear, and ensuring electrical connections are secure is important to keep the pump in good working condition.

Overall, the specific operation can vary depending on the type and model of the fuel transfer pump, but these steps outline the general process for how they work. Always refer to the manufacturer’s instructions for the specific pump you are using for detailed guidance.

RELATED PARTS:

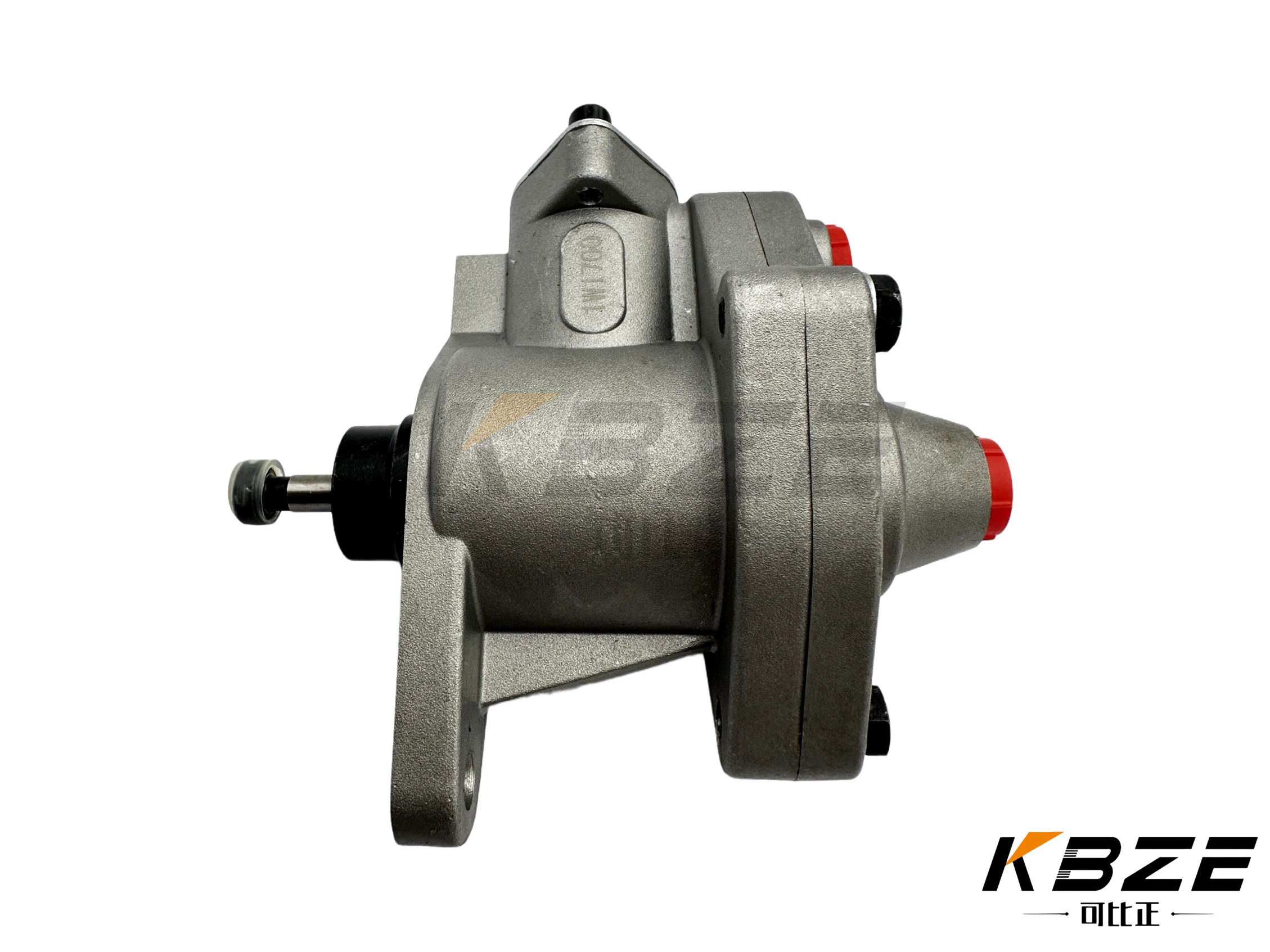

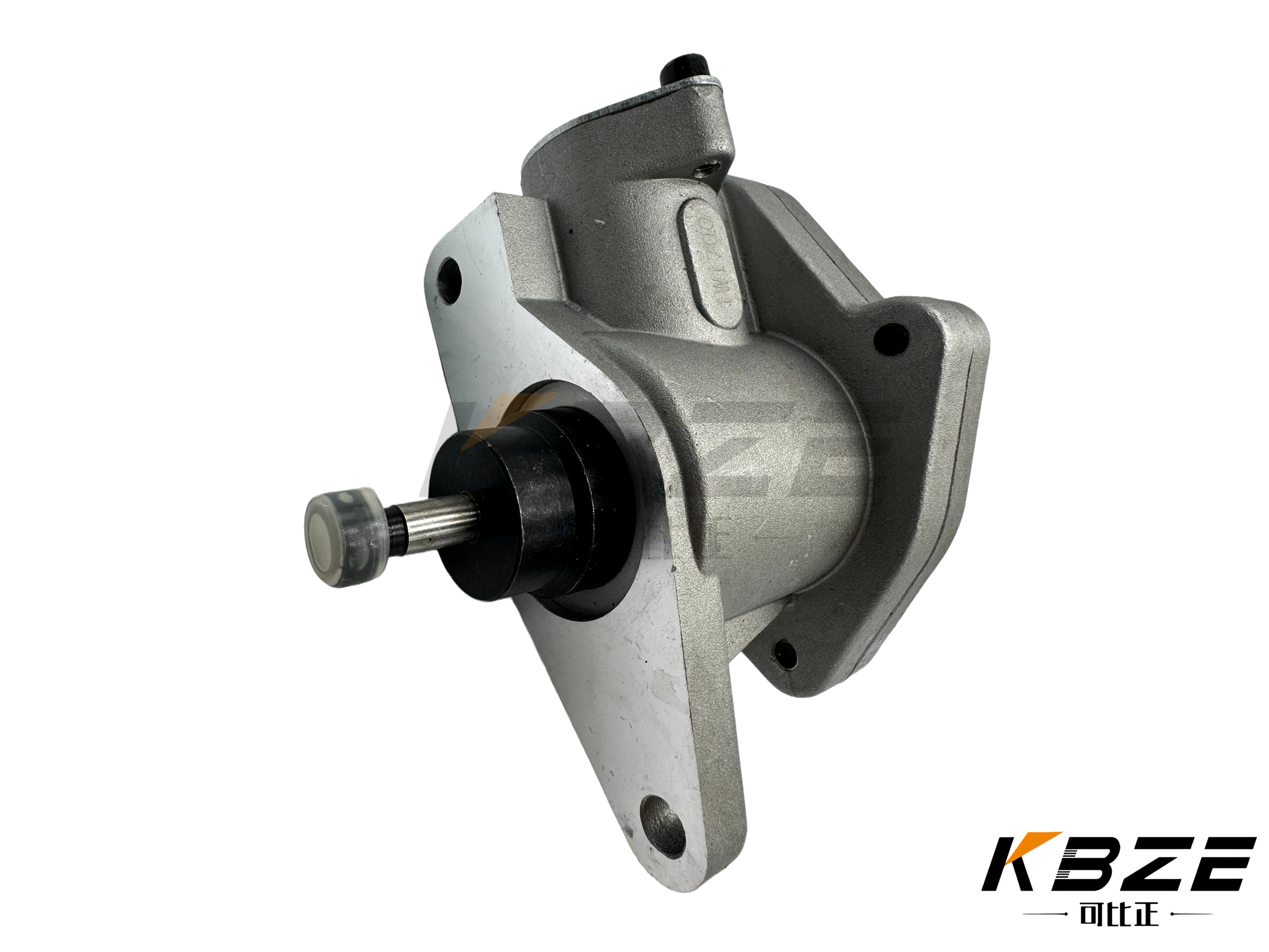

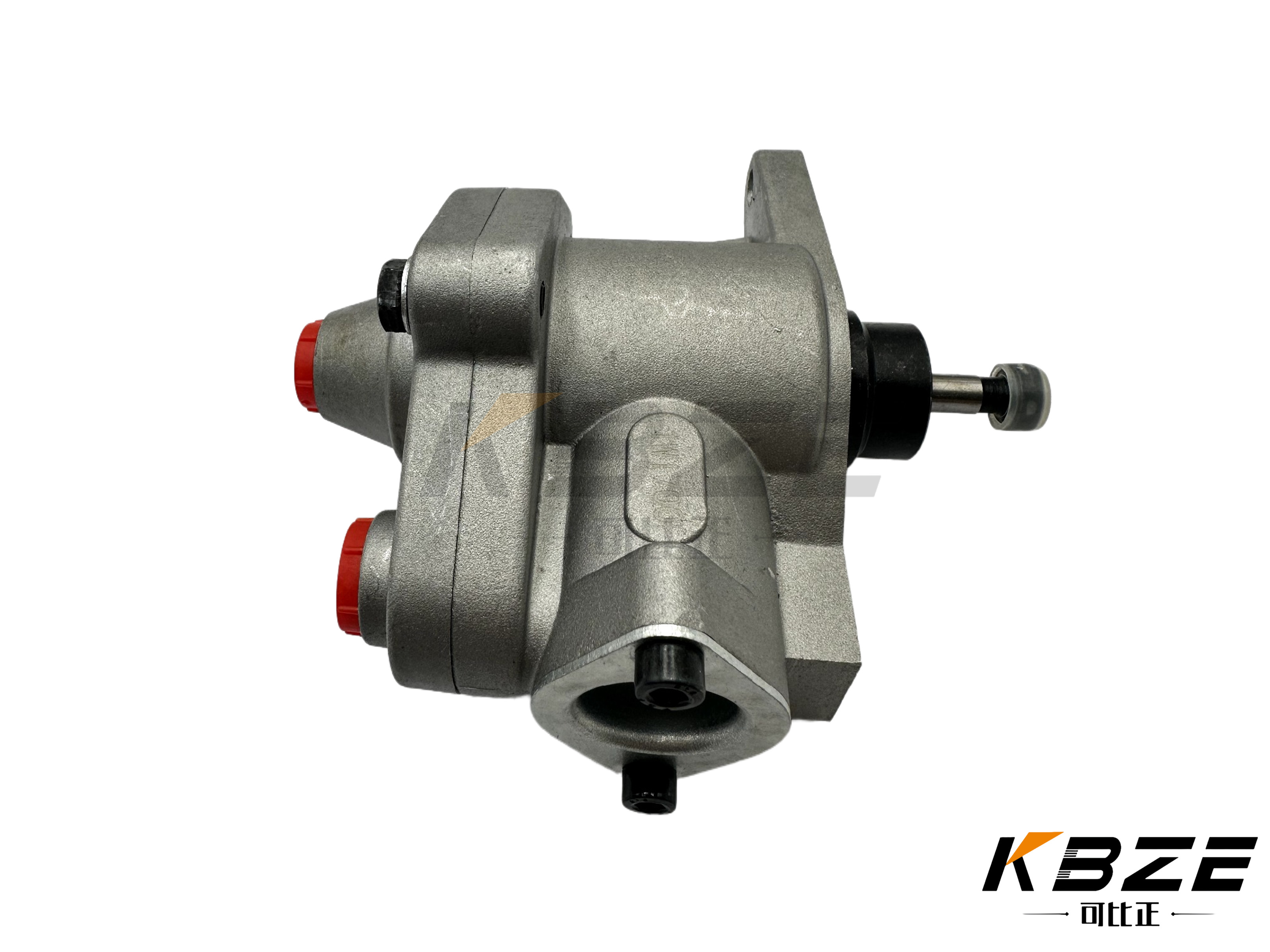

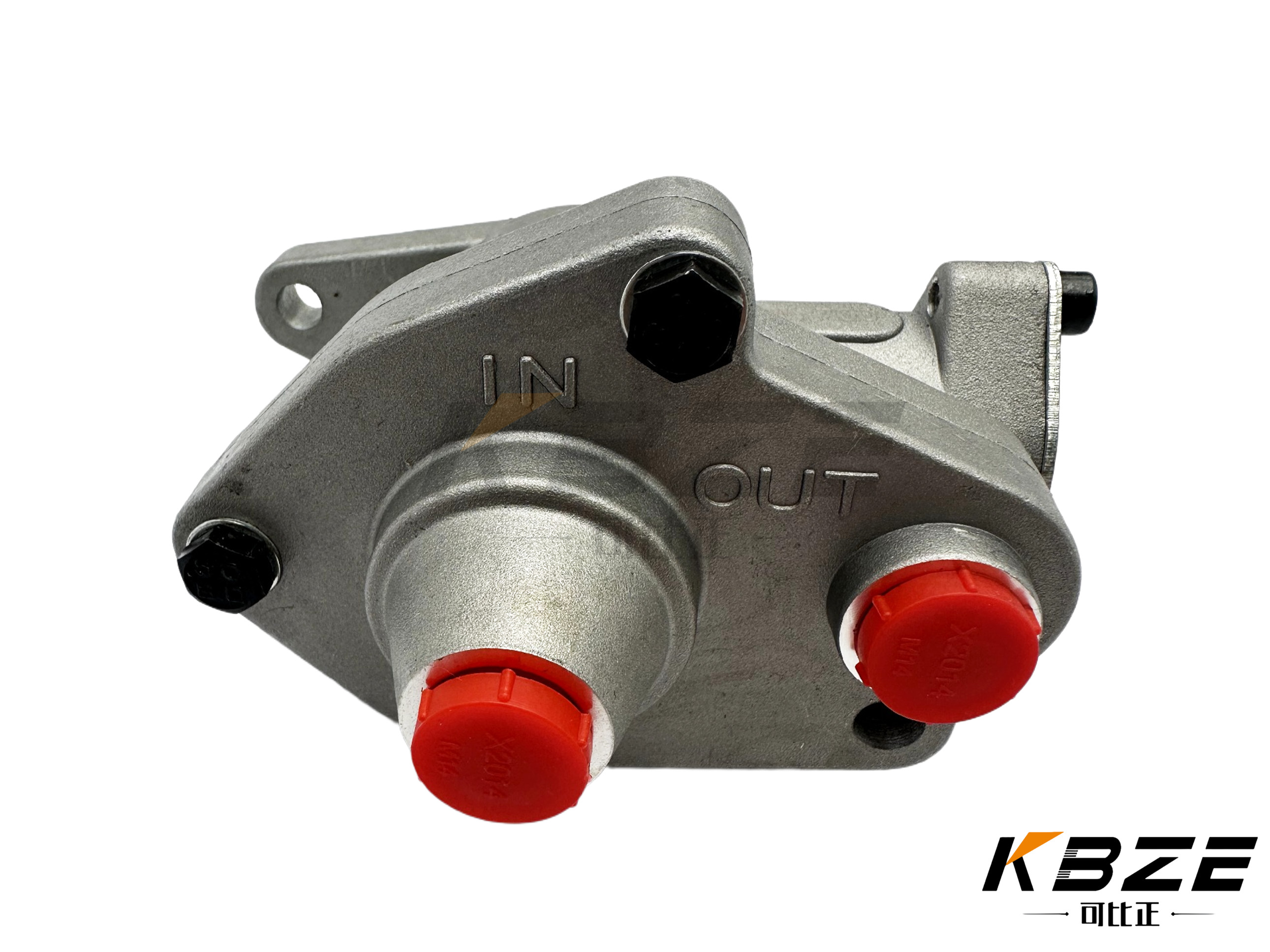

PRODUCT SHOWS:
