Product Details
Place of Origin: MADE IN CHINA
Brand Name: KBZE
Certification: ISO9001
Model Number: CA2964747 296-4747 2964747
Payment & Shipping Terms
Minimum Order Quantity: Acceptable Trial Order
Price: DIRECTLY FACTORY PRICE
Packaging Details: PP Bag & Carton Box
Delivery Time: 3-5DAYS AFTER RECEIVED PAYMENT(WORKING DAYS)
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50000 SET/WEEK
MATERIAL: |
SEAMLESS STEEL TUBE |
COLOR: |
SILVER |
QUALITY: |
OEM |
CONDITION: |
100% NEW |
FLEXIBILITY: |
FLEXIBLE AND EASY INSTALL |
APPLICATION: |
E311 E312 E314 E315 E319 |
DURABILITY: |
LONG-LASTING AND RELIABLE |
COMPATIBILITY: |
CATERPILLAR C4.2 DIESEL ENGINE |
MATERIAL: |
SEAMLESS STEEL TUBE |
COLOR: |
SILVER |
QUALITY: |
OEM |
CONDITION: |
100% NEW |
FLEXIBILITY: |
FLEXIBLE AND EASY INSTALL |
APPLICATION: |
E311 E312 E314 E315 E319 |
DURABILITY: |
LONG-LASTING AND RELIABLE |
COMPATIBILITY: |
CATERPILLAR C4.2 DIESEL ENGINE |
PRODUCT DESCRIPTION

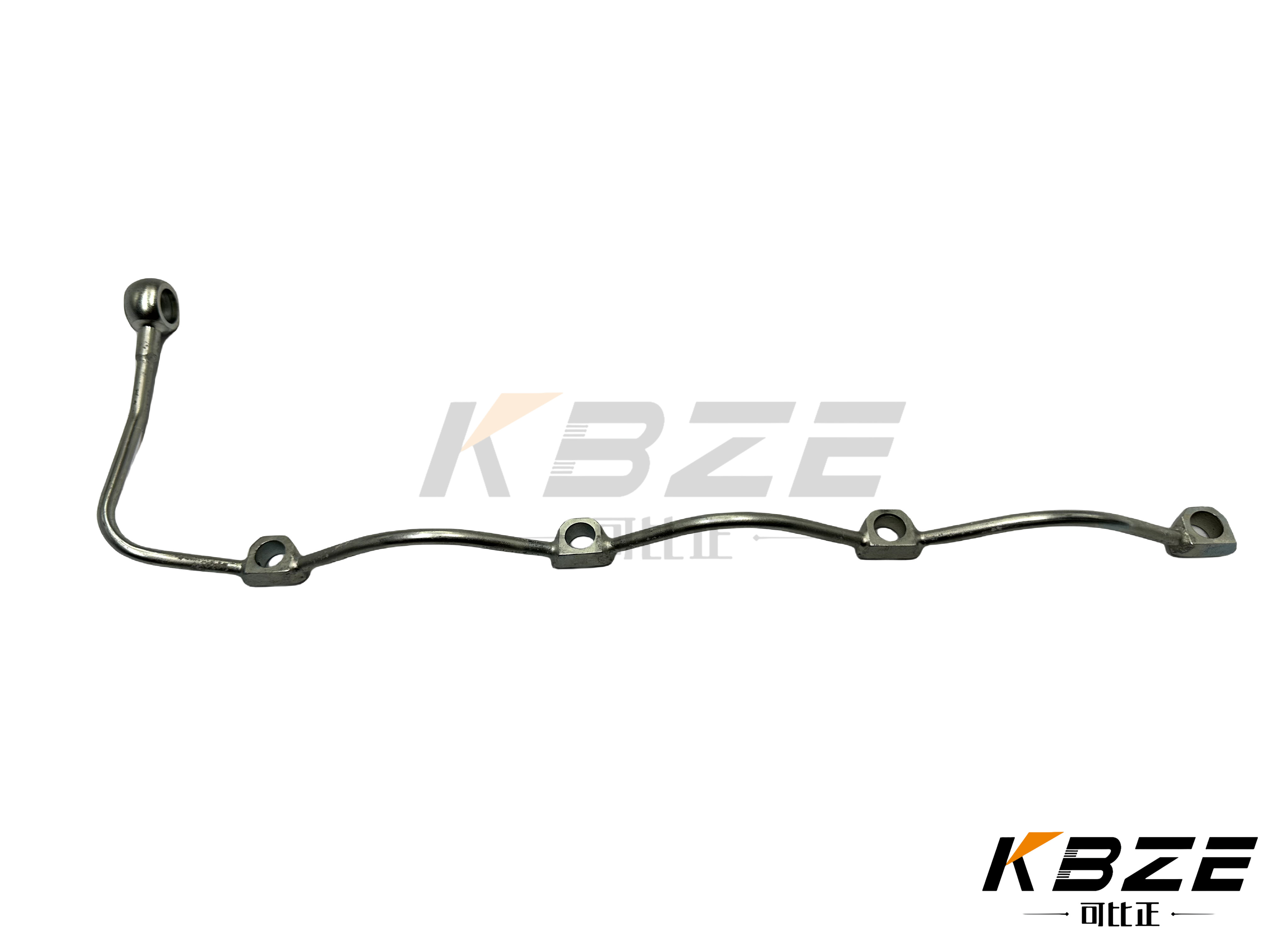

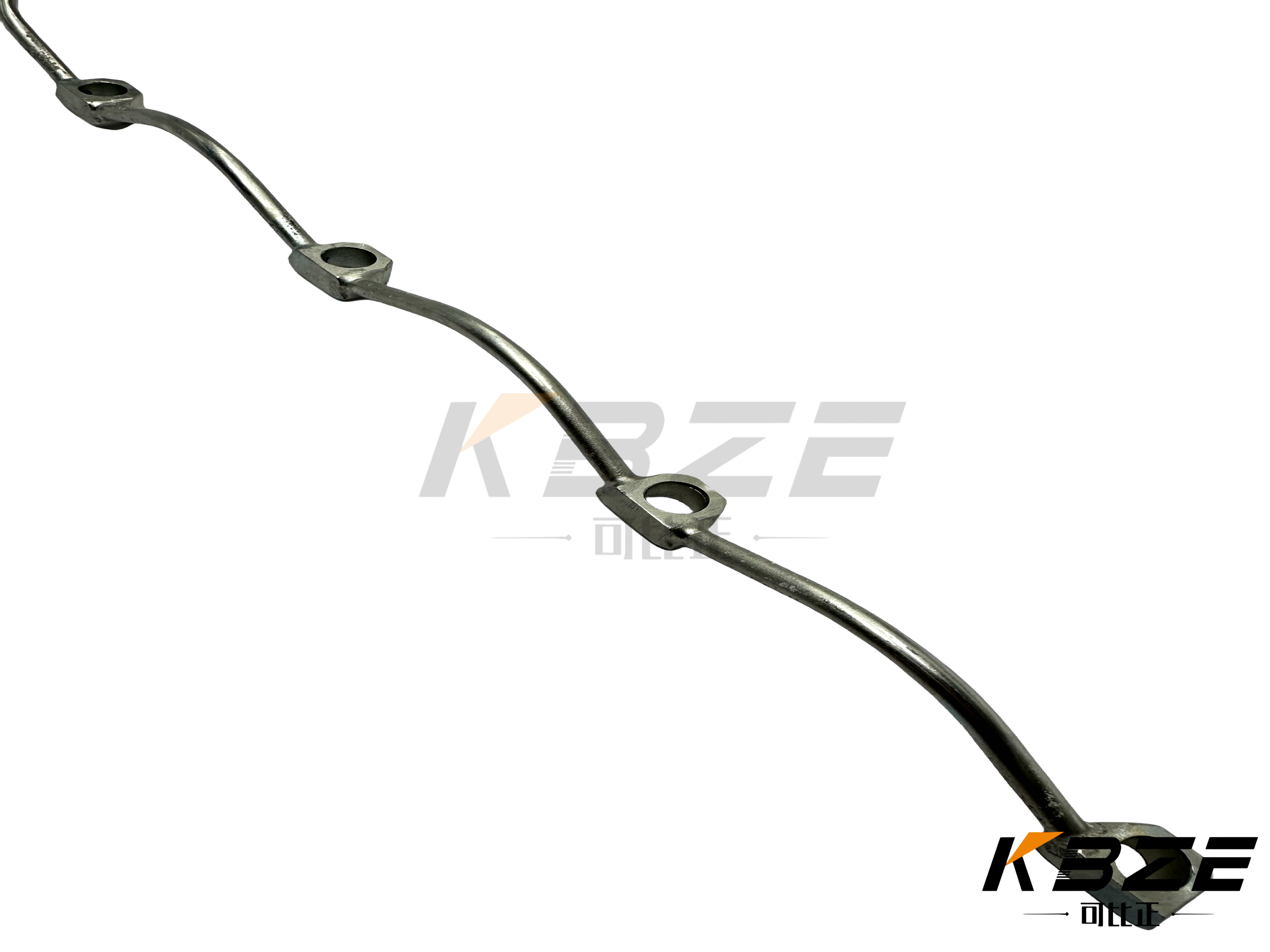

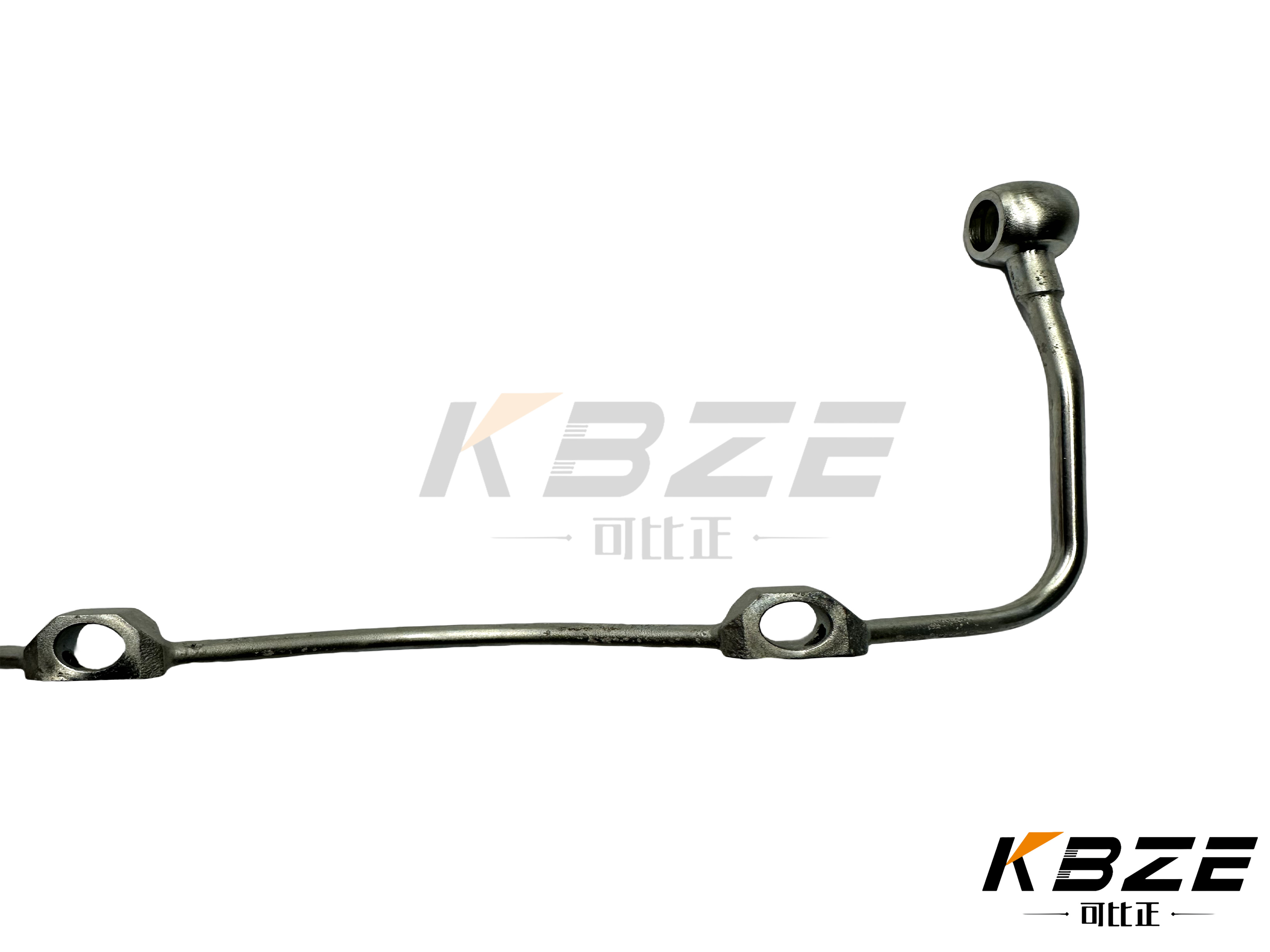

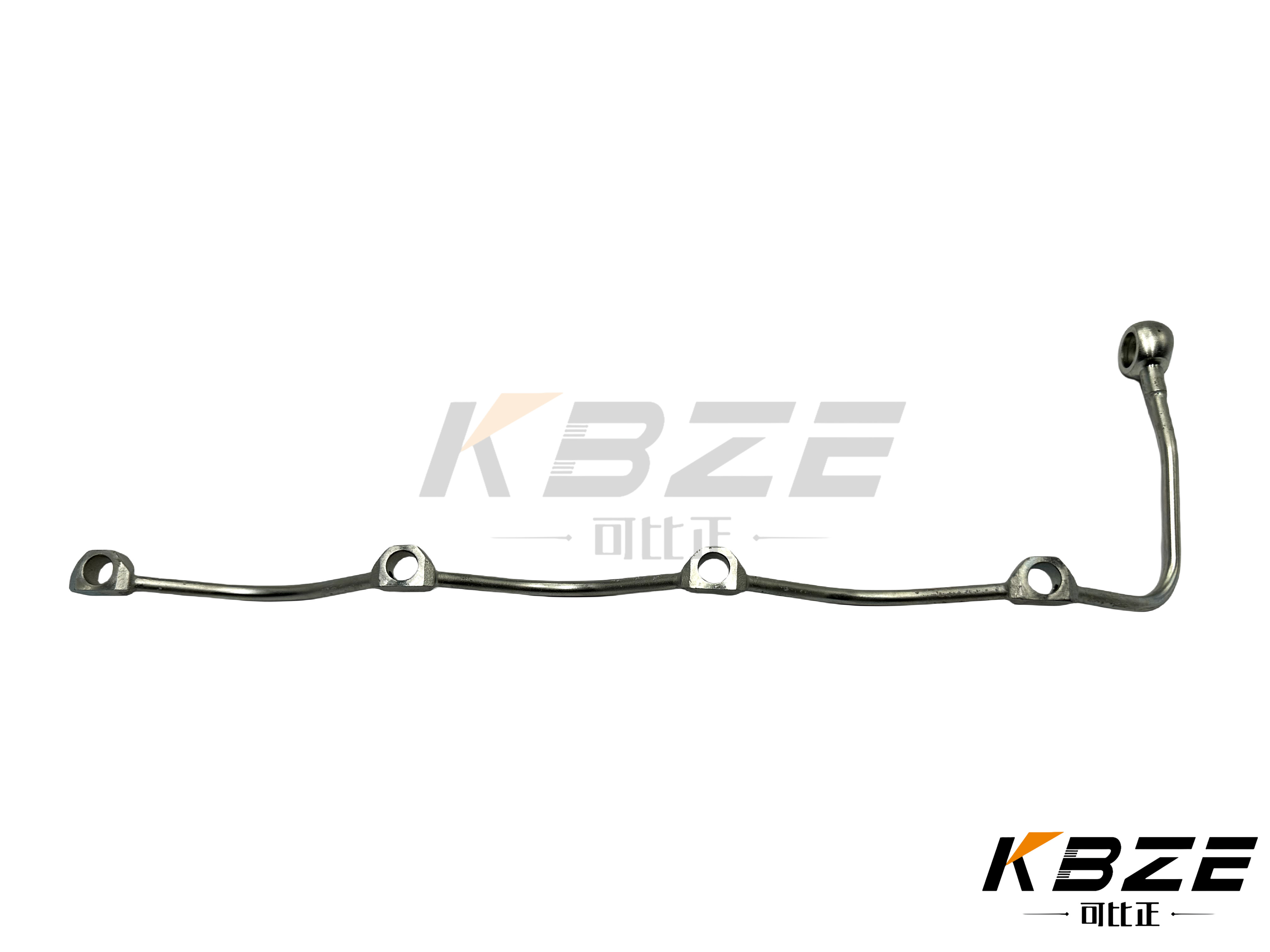

| PRODUCT NAME: | INJECTOR OVER FLOW PIPE CA2964747 296-4747 2964747 FOR C4.2 ENGINE 32E61-04100 |
| PART NO: | CA2964747 296-4747 2964747 |
| BRAND NAME: | KBZE INJECTOR OVER FLOW PIPE |
| APPLICABLE MACHINE: |
CATERPILLAR C4.2 DIESEL ENGINE |
| SIZE: | STANDARD SIZE |
| MOQ: | ONE PCS |
| PLACE OF ORIGIN: | MADE IN CHINA |
| CONDITION: | 100% NEW GENUINE |
| CUSTOMIZED: | OEM & ODM |
| DELIVERY METHOD: | AIR, SEA, FEDEX, DHL, UPS, EMS |
| PORT | NANSHA PORT |
| SUITABLE MODEL: |
CATERPILLAR 311D LRR, 312D, 312D L, 313D, 314D CR, 314D LCR, 315D L, 318D L, 319D, 319D L, 319D LN |
WE CAN SUPPLY OTHER FUEL PIPE
|
322-9616 |
322-9615 | 298-4566 | 233-9537 |
| 51-7556 | 5I-7577 | 368-8559 | 420-3271 |
| 205-1332 | 159-0918 | 456-5182 | 365-4584 |
| 224-8171 | 224-8172 | 16292-33210 | 16292-33222 |
| 6205-51-8530 | 6735-51-5140 | 6732-41-8410 | 6738-51-8120 |
| 6745-51-8120 | 6745-51-8110 | 6741-01-3440 | 6742-01-3450 |
| 6738-61-8410 | 6754-51-8210 | 6754-51-8100 | 6745-51-8130 |
| 1C040-33040 | 1C040-33065 | 3899412X | 3899508 |
| VH1547E0110 | S2410-72140 | VH241061440A | 29601-E0150 |
| ME088921 | 6737-51-8110 | 6742-01-3450 | 6205-51-8540 |
A fuel injector oil return pipe is part of a diesel engine's fuel system, especially in heavy machinery like excavators. Here's how it works:
### 1. **Fuel Injection Process:**
- **Fuel Injector:** The fuel injector is responsible for spraying a precise amount of diesel fuel into the engine's combustion chamber.
- **Pressure Control:** To inject fuel at the right pressure, the injector uses a high-pressure pump. However, not all fuel is injected into the engine—some of it is used to cool and lubricate the injector.
### 2. **Excess Fuel Return:**
- **Excess Fuel:** The injector receives more fuel than necessary to ensure proper lubrication and cooling. The excess fuel that is not injected into the combustion chamber needs to be returned to the fuel tank or fuel system.
- **Oil Return Pipe:** The fuel injector oil return pipe is a dedicated pipe that channels this excess fuel (often mixed with some oil used for lubrication) back to the fuel tank or the fuel system for recirculation. This prevents wastage and ensures the injector operates efficiently.
### 3. **Benefits:**
- **Efficiency:** The return pipe helps maintain optimal pressure in the fuel injector by ensuring excess fuel is removed, which contributes to better engine efficiency.
- **Cooling:** By returning the excess fuel, the pipe helps in cooling the injector, which prevents overheating and prolongs the life of the injector.
- **Lubrication:** The returned fuel often contains a small amount of oil, which helps in lubricating the injector components, reducing wear and tear.
This process ensures the fuel system remains balanced, efficient, and durable, contributing to the overall performance of the engine.
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 294-1788 | [4] | SEAL | |
| 2 | 096-9260 | [4] | BOLT AS | |
| 3 | 296-4740 | [1] | PIPE | |
| 4 | 309-3863 | [1] | RAIL AS-FUEL | |
| 305-5291 | [1] | VALVE AS-RELIEF (FUEL RAIL) | ||
| 5 | 296-4741 | [1] | PIPE | |
| 6 | 296-4742 | [1] | PIPE | |
| 7 | 296-4743 | [1] | PIPE | |
| 8 | 296-4744 | [1] | PIPE | |
| 9 | 294-1796 | [4] | WASHER-SPECIAL | |
| 10 | 305-4772 | [1] | PIPE | |
| 11 | 297-7657 | [1] | HOSE | |
| 12 | 297-7658 | [1] | BLOCK | |
| 13 | 294-1800 | [4] | SUPPORT | |
| 14 | 294-1802 | [2] | CLAMP | |
| 15 | 294-1803 | [4] | SEAL-O-RING | |
| 16 | 095-2039 | [8] | WASHER-SPECIAL | |
| 17 | 1R-6573 | [4] | GASKET | |
| 18 | 296-4812 | [4] | BOLT | |
| 19 | 294-1805 M | [4] | BOLT (M8X1.25X43-MM) | |
| 20 | 195-8256 | [5] | BOLT (M8X1.25X45-MM) | |
| 21 | 5C-2890 M | [2] | NUT (M6X1-THD) | |
| 22 | 9X-8256 | [2] | WASHER (6.6X12X2-MM THK) | |
| 23 | 099-4437 | [4] | GASKET | |
| 24 | 099-5041 | [3] | BOLT (M14X1.5X27-MM) | |
| 25 | 294-1808 | [2] | BOLT AS | |
| 26 | 294-1812 | [2] | WASHER | |
| 27 | 310-9537 | [1] | VALVE AS | |
| 28 | 296-4747 | [1] | PIPE | |
| 29 | 296-4748 | [1] | BRACKET | |
| M | METRIC PART | |||
RELATED PARTS:
PRODUCT SHOWS:
