Product Details
Place of Origin: MADE IN CHINA
Brand Name: KBZE
Certification: ISO9001
Model Number: 1-15415004-0
Payment & Shipping Terms
Minimum Order Quantity: Acceptable Trial Order
Price: DIRECTLY FACTORY PRICE
Packaging Details: PP Bag & Carton Box
Delivery Time: 3-5DAYS AFTER RECEIVED PAYMENT(WORKING DAYS)
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50000 SET/WEEK
MATERIAL: |
SEAMLESS STEEL TUBE |
COLOR: |
SILVER |
QUALITY: |
OEM |
CONDITION: |
100% NEW |
FLEXIBILITY: |
FLEXIBLE AND EASY INSTALL |
APPLICATION: |
HITACHI EXCAVATOR |
DURABILITY: |
LONG-LASTING AND RELIABLE |
COMPATIBILITY: |
ISUZU 6SD1 |
MATERIAL: |
SEAMLESS STEEL TUBE |
COLOR: |
SILVER |
QUALITY: |
OEM |
CONDITION: |
100% NEW |
FLEXIBILITY: |
FLEXIBLE AND EASY INSTALL |
APPLICATION: |
HITACHI EXCAVATOR |
DURABILITY: |
LONG-LASTING AND RELIABLE |
COMPATIBILITY: |
ISUZU 6SD1 |
PRODUCT DESCRIPTION
| PRODUCT NAME: |

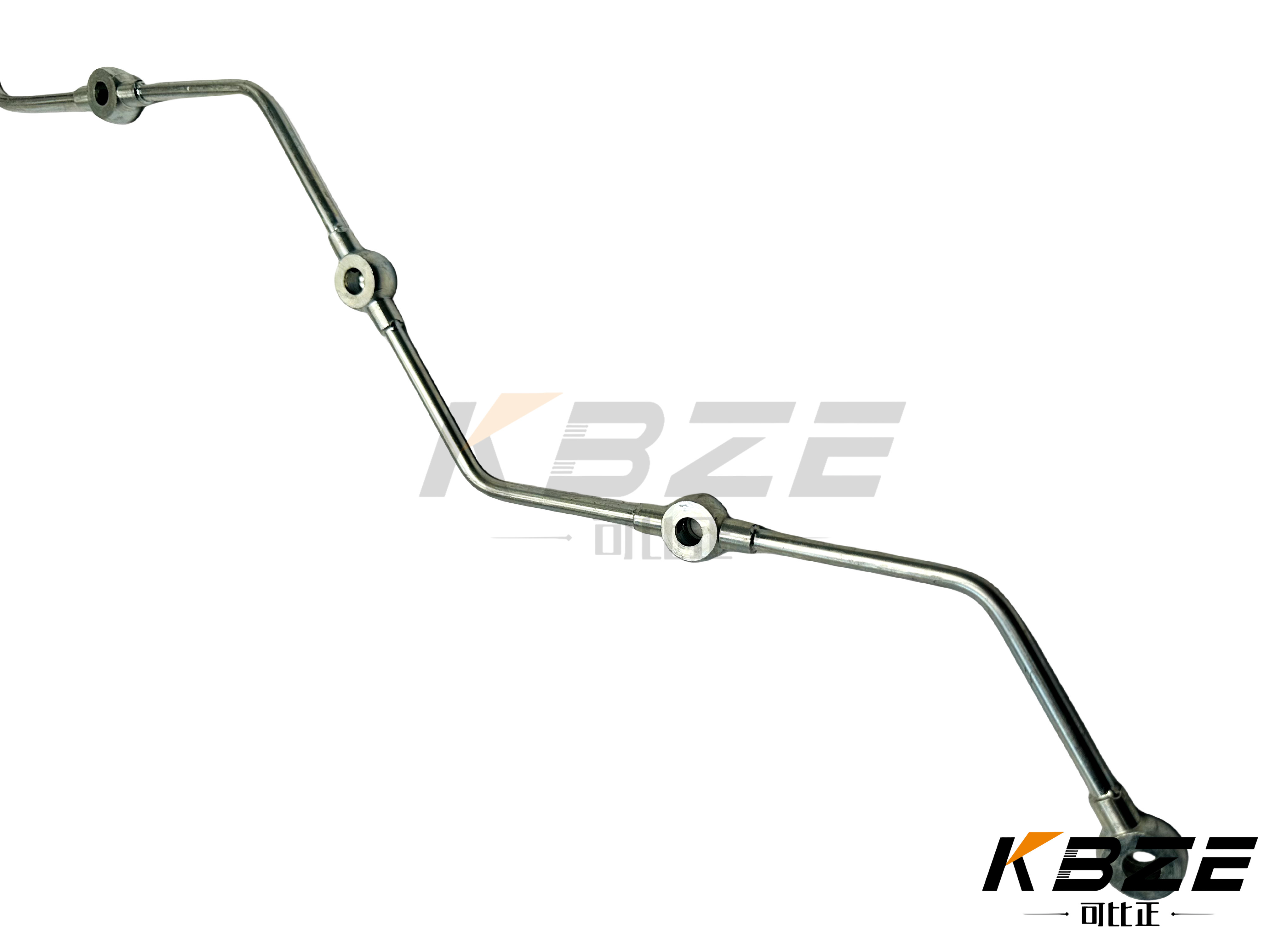

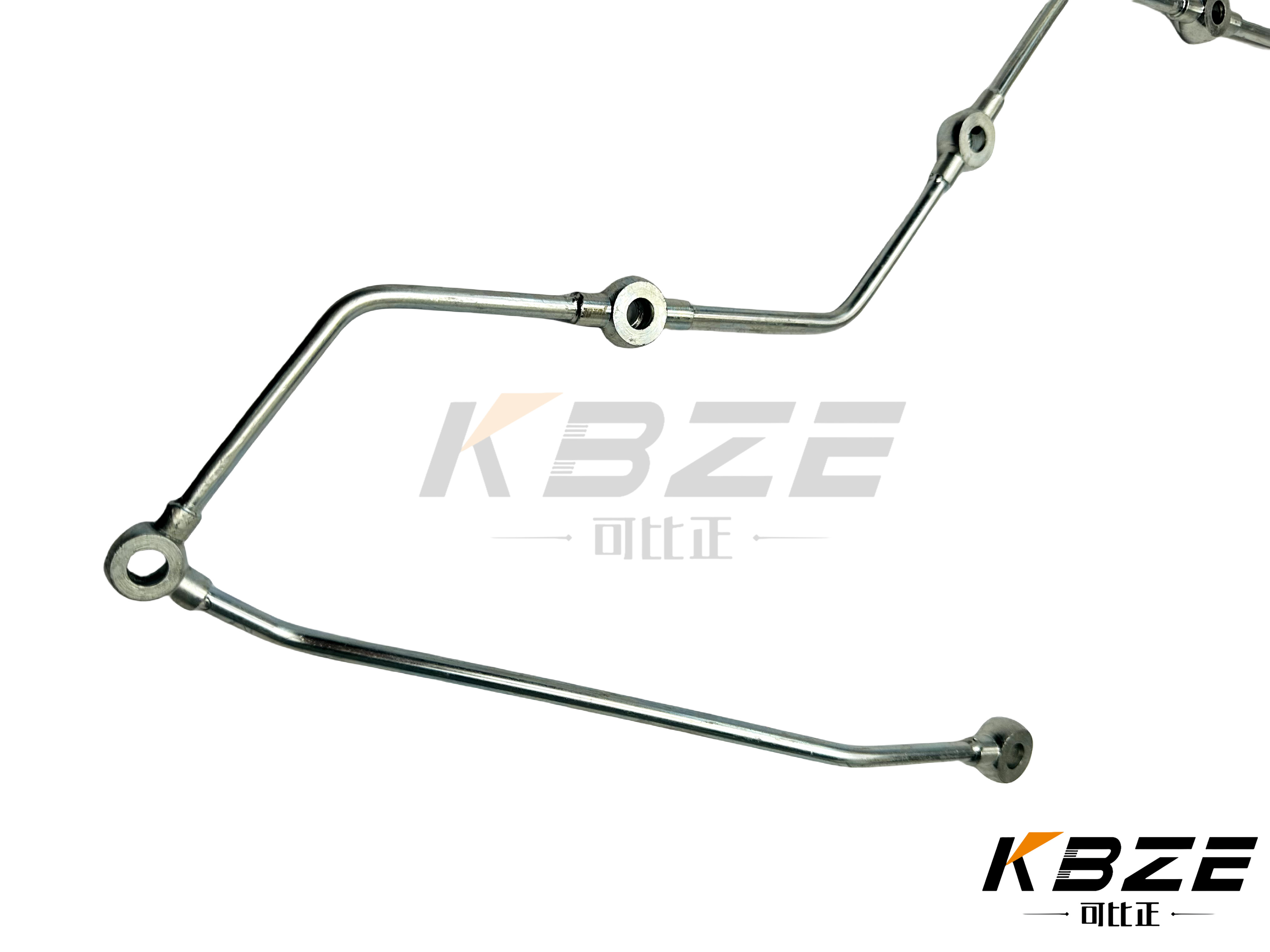

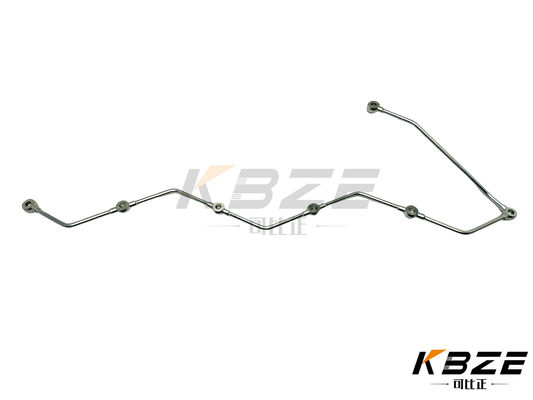

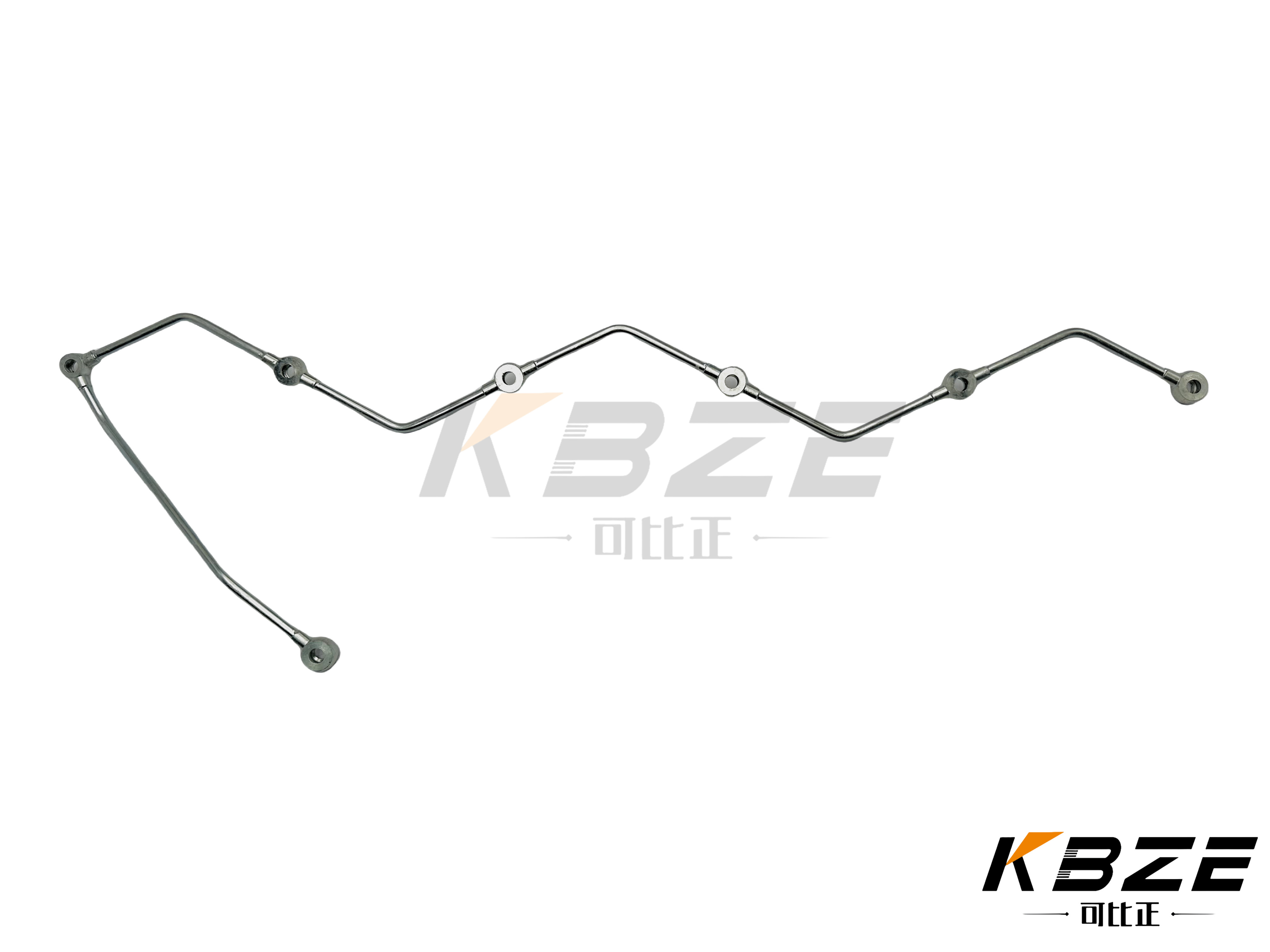

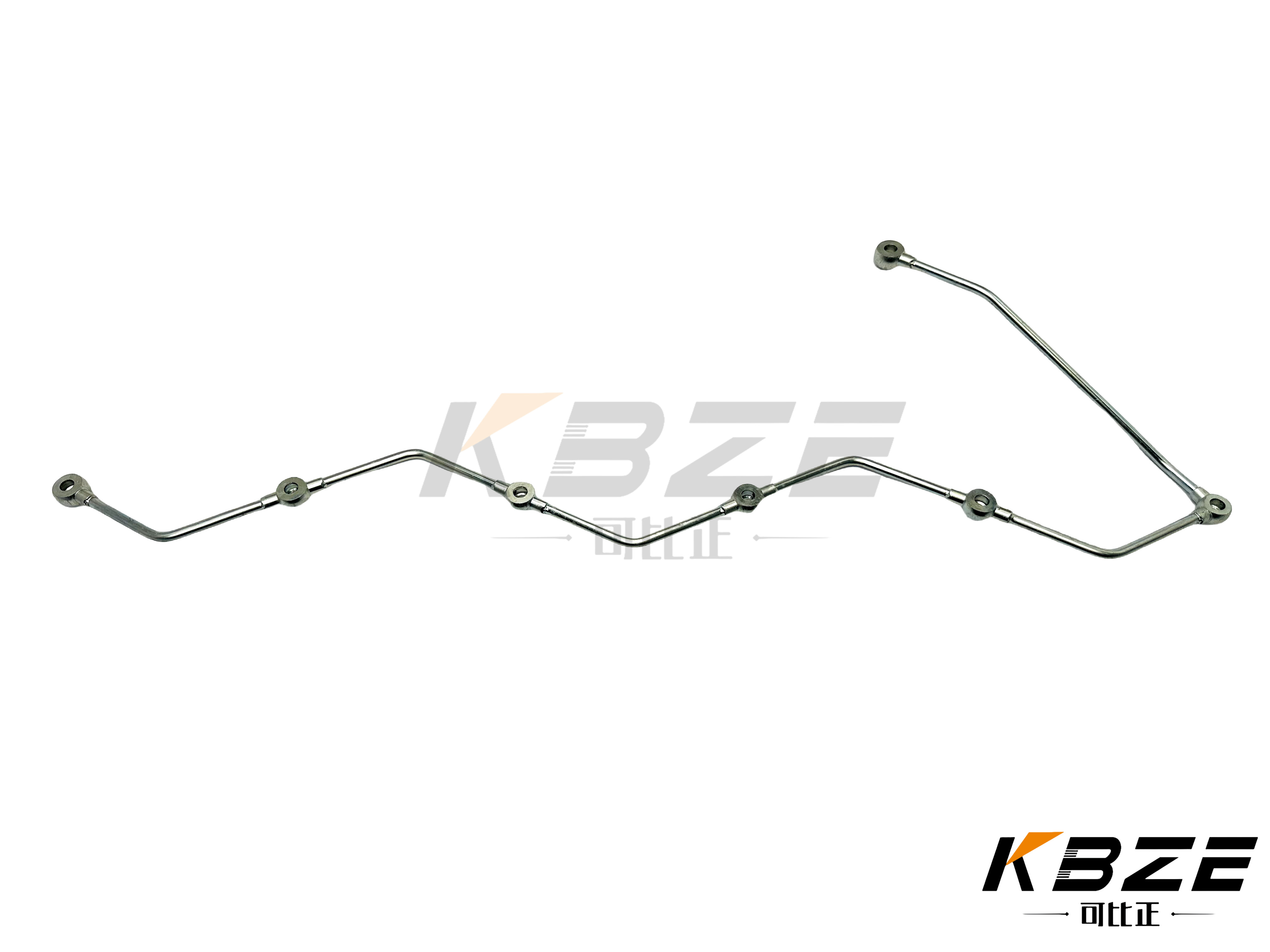

KBZE 1-15415004-0 HITACHI EX300-2 EX300-3 EX300-5 NOZZLE RETUNE PIPE FOR ISUZU 6SD1 ENGINE |
| PART NO: | 1-15415004-0 |
| BRAND NAME: | KBZE INJECTOR FUEL LEAK OFF PIPE |
| APPLICABLE MACHINE: |
ISUZU 6SD1 DIESEL ENGINE |
| SIZE: | STANDARD SIZE |
| MOQ: | ONE PCS |
| PLACE OF ORIGIN: | MADE IN CHINA |
| CONDITION: | 100% NEW GENUINE |
| CUSTOMIZED: | OEM & ODM |
| DELIVERY METHOD: | AIR, SEA, FEDEX, DHL, UPS, EMS |
| PORT | CHINA PORT |
| SUITABLE MODEL: |
HITACHI EXCAVATOR |
WE CAN SUPPLY OTHER FUEL PIPE
| 6207-51-8131 | 6735-51-8140 | 6745-51-8210 | VH241061440A |
| 5I-7556 | 1-13312346-2 | ME088549 | ME047853 |
| 6205-51-8130 | 32F61-06700 | 39601-E0150 | 6738-81-8410 |
| 51-7688 | 8-94394193-0 | 6743-71-5110 | 8-97232957-0 |
| 8-98038775-0 | 8-97124234-0 | 8-98008791-0 | 6156-71-5611 |
| ME440239 | ME440842 | ME07857 | VH23816E0100 |
| ME078560 | ME19G05-17018 | 1-13314016-0 | 6732-715411 |
| VH2378-32710 | VHS166913730 | VHS166913740 | VH21576E0020 |
| 34336-10901 | VH16322E140 | VH16332E0100 | VH23816E0080 |
| VH237832720A | VH166913766A | VH166913770A | VH166913750AUSI |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 1156027855 | [1] | PUMP ASM; INJ | C SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. |
| 1 | 1156032620 | [1] | PUMP ASM; INJ | SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. |
| 2 | 168060900 | [4] | BOLT; INJ PUMP | A M10X90 |
| 2 | 168560900 | [4] | BOLT; INJ PUMP | M10X90 |
| 3 | 9091505100 | [4] | WASHER; LK,INJ PUMP | A |
| 3 | 915105100 | [4] | WASHER; LK,INJ PUMP | |
| 4 | 9091605100 | [4] | WASHER; INJ PUMP | A |
| 4 | 916105100 | [4] | WASHER; INJ PUMP | |
| 6 | 1197510710 | [1] | BRACKET; INJ PUMP TO C/BL | |
| 6 | 1197511680 | [1] | BRACKET; INJ PUMP TO C/BL | |
| 6 | 1197511680 | [1] | BRACKET; INJ PUMP TO C/BL | |
| 007(A). | 168060650 | [3] | BOLT; INJ PUMP BRKT | M10X65 |
| 007(A). | 281810600 | [3] | BOLT; INJ PUMP BRKT | A M10X60 FLANGE |
| 007(A). | 281510600 | [3] | BOLT; INJ PUMP BRKT | M10X60 FLANGE |
| 007(B). | 238010220 | [1] | BOLT; INJ PUMP BRKT | M10X22 |
| 007(B). | 238010350 | [1] | BOLT; INJ PUMP BRKT | M10X35 |
| 007(B). | 287810250 | [1] | BOLT; INJ PUMP BRKT | A M10X25 FLANGE |
| 007(B). | 287810400 | [1] | BOLT; INJ PUMP BRKT | C M10X40 FLANGE |
| 007(B). | 287510250 | [1] | BOLT; INJ PUMP BRKT | M10X25 FLANGE |
| 007(B). | 287510400 | [1] | BOLT; INJ PUMP BRKT | M10X40 FLANGE |
| 10 | 9197590191 | [2] | DOWEL; INJ PUMP | |
| 11 | 9091605100 | [5] | WASHER; INJ PUMP BRKT | |
| 15 | 1157801031 | [1] | COUPLING ASM; INJ PUMP | SEE FIG-NO 0-87 FOR COMPONENT. |
| 16 | 1154146280 | [1] | PIPE; INJ NO.1 | |
| 17 | 1154146460 | [1] | PIPE; INJ NO.2 | |
| 18 | 1154143100 | [1] | PIPE; INJ NO.3 | |
| 19 | 1154143830 | [1] | PIPE; INJ NO.4 | |
| 20 | 1154146470 | [1] | PIPE; INJ NO 5 | |
| 21 | 1154145190 | [1] | PIPE; INJ NO 6 | |
| 031(A). | 1153001861 | [6] | NOZZLE ASM; INJ | C |
| 031(A). | 1153002892 | [6] | NOZZLE ASM; INJ | |
| 32 | 1153300630 | [6] | HOLDER ASM; NOZZLE | |
| 32 | 1153300871 | [6] | HOLDER ASM; NOZZLE | |
| 33 | 1153111640 | [6] | NOZZLE; INJ | |
| 33 | 1153112371 | [6] | NOZZLE; INJ | |
| 34 | 1096751390 | [6] | BOLT; EYE,NOZZLE HOLDER | M8X19 FLANGE |
| 34 | 1096750371 | [6] | BOLT; EYE,NOZZLE HOLDER | M8X18 FLANGE |
| 35 | 8941711950 | [6] | NUT; NOZZLE RET,NOZZLE HOLDER | |
| 35 | 1153320170 | [6] | NUT; NOZZLE RET,NOZZLE HOLDER | |
| 36 | 9095714080 | [12] | GASKET; RETURN PIPE,NOZZLE HOLDER | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 36 | 1096300820 | [12] | GASKET; RETURN PIPE,NOZZLE HOLDER | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 37 | 1153340070 | [6] | NUT; CAP,NOZZLE HOLDER | |
| 37 | 5153320060 | [6] | NUT; CAP,NOZZLE HOLDER | |
| 38 | 5153390600 | [6] | GASKET; CAP NUT,NOZZLE HOLDER | |
| 39 | 8941695030 | [6] | SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER | |
| 41 | 5153490020 | [6] | CONNECTOR; FUEL INL,NOZZLE HOLDER | |
| 41 | 5153510010 | [6] | CONNECTOR; FUEL INL,NOZZLE HOLDER | |
| 42 | 5153390030 | [6] | GASKET; INL CONNECTOR,NOZZLE HOLDER | |
| 44 | 5153430050 | [6] | SPRING; NOZZLE,NOZZLE HOLDER | |
| 45 | 8941695020 | [6] | ROD; PUSH,NOZZLE HOLDER | |
| 46 | 9153470030 | [12] | PIN; NOZZLE SET,NOZZLE HOLDER | |
| 54 | 9153390510 | [6] | COVER; DUST,NOZZLE HOLDER | |
| 60 | 9091505080 | [12] | WASHER; NOZZLE HOLDER | A |
| 60 | 915105080 | [12] | WASHER; NOZZLE HOLDER | |
| 62 | 9091104080 | [12] | NUT; NOZZLE HOLDER | A |
| 62 | 911105080 | [12] | NUT; NOZZLE HOLDER | |
| 66 | 1153150131 | [6] | GASKET; INJ NOZZLE | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 98 | 9154196130 | [8] | CLIP; "A",INJ PIPE | |
| 99 | 9098025390 | [4] | BOLT; CLIP,INJ,PIPE | M5X20 |
| 99 | 208005300 | [2] | BOLT; CLIP,INJ,PIPE | M5X30 |
| 111 | 9091505050 | [6] | WASHER; LK,CLIP | A |
| 111 | 915105050 | [6] | WASHER; LK,CLIP | |
| 114 | 9154196120 | [4] | CLIP; INJ PIPE | |
| 115 | 9154196140 | [4] | CLIP; "B",INJ PIPE | |
| 133 | 1154150040 | [1] | PIPE; INJ NOZZLE LEAK OFF | |
| 134 | 1096750371 | [1] | BOLT; JOINT,LEAK OFF PIPE | M8X18 FLANGE |
| 135 | 1096300820 | [2] | GASKET; JOINT BOLT,LEAK OFF PIPE | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 161 | 9041108200 | [2] | STUD; INJ PUMP | M8X20 L=32 |
| 161 | 410108200 | [2] | STUD; INJ PUMP | M8X20 L=32 |
| 174 | 1096750770 | [1] | BOLT; EYE,FUEL OUTLET,FEED PUMP | A M10X21 FLANGE |
| 174 | 8973722380 | [1] | BOLT; EYE,FUEL OUTLET,FEED PUMP | M10X21 FLANGE |
| 199(A). | 1096300850 | [8] | GASKET; EYE BOLT | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 199(B). | 1096300830 | [1] | GASKET; EYE BOLT | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 216(A). | 1096750630 | [1] | BOLT; EYE | |
| 216(B). | 1096750860 | [3] | BOLT; EYE |
